Raspberry Pi Ethernet Switching
Written by David Evans, first published (last updated )

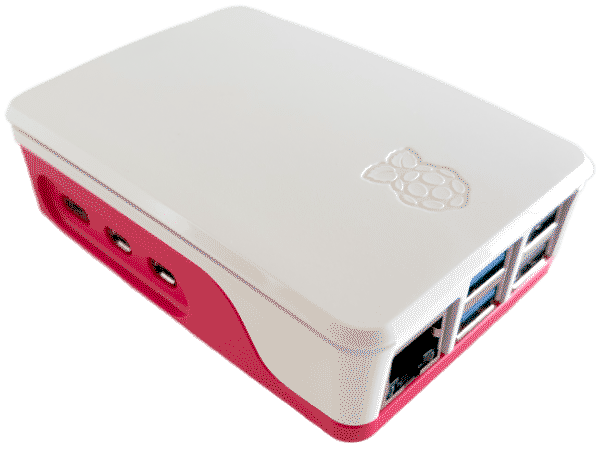

The Raspberry Pi is a surprisingly capable device for offloading tasks to. I have one which is primarily used for running Docker images. It spends most of its time sitting in the router cupboard connected directly via Ethernet, but sometimes it comes out to be connected to a screen or go travelling. At these times it has to use Wi-Fi instead.
The problem with Pi Wi-Fi
The Pi’s built-in Wi-Fi connectivity is fast, but occasionally laggy, especially if there is a delay between packets. This is presumably due to the Wi-Fi chip entering a “sleep” mode or similar. Whatever the cause, it can be quite disruptive to SSH sessions. Here’s a ping dump connecting from my laptop to the Pi over Wi-Fi, with 10 second intervals between each ping:
$ ping -i 10 -c 10 mypi.local PING mypi.local (192.168.0.5): 56 data bytes 64 bytes from 192.168.0.5: icmp_seq=0 ttl=64 time=3.158 ms 64 bytes from 192.168.0.5: icmp_seq=1 ttl=64 time=10.868 ms 64 bytes from 192.168.0.5: icmp_seq=2 ttl=64 time=62.133 ms 64 bytes from 192.168.0.5: icmp_seq=3 ttl=64 time=92.364 ms 64 bytes from 192.168.0.5: icmp_seq=4 ttl=64 time=10.043 ms 64 bytes from 192.168.0.5: icmp_seq=5 ttl=64 time=49.769 ms 64 bytes from 192.168.0.5: icmp_seq=6 ttl=64 time=10.035 ms 64 bytes from 192.168.0.5: icmp_seq=7 ttl=64 time=5.964 ms 64 bytes from 192.168.0.5: icmp_seq=8 ttl=64 time=38.031 ms 64 bytes from 192.168.0.5: icmp_seq=9 ttl=64 time=72.179 ms --- mypi.local ping statistics --- 10 packets transmitted, 10 packets received, 0.0% packet loss round-trip min/avg/max/stddev = 3.158/35.454/92.364/30.528 ms
Notice the maximum round-trip time reported is 92ms! This is very slow for a local network, even over Wi-Fi, and the times are also wildly inconsistent(note 1).
Faster over Ethernet
Connecting the Pi to the router via Ethernet improves this substantially, even if the laptop still connects to the router via Wi-Fi:
$ ping -i 10 -c 10 mypi.local PING mypi.local (192.168.0.11): 56 data bytes 64 bytes from 192.168.0.11: icmp_seq=0 ttl=64 time=6.000 ms 64 bytes from 192.168.0.11: icmp_seq=1 ttl=64 time=7.159 ms 64 bytes from 192.168.0.11: icmp_seq=2 ttl=64 time=7.399 ms 64 bytes from 192.168.0.11: icmp_seq=3 ttl=64 time=7.136 ms 64 bytes from 192.168.0.11: icmp_seq=4 ttl=64 time=7.057 ms 64 bytes from 192.168.0.11: icmp_seq=5 ttl=64 time=7.420 ms 64 bytes from 192.168.0.11: icmp_seq=6 ttl=64 time=3.060 ms 64 bytes from 192.168.0.11: icmp_seq=7 ttl=64 time=4.972 ms 64 bytes from 192.168.0.11: icmp_seq=8 ttl=64 time=7.373 ms 64 bytes from 192.168.0.11: icmp_seq=9 ttl=64 time=3.285 ms --- mypi.local ping statistics --- 10 packets transmitted, 10 packets received, 0.0% packet loss round-trip min/avg/max/stddev = 3.060/6.086/7.420/1.631 ms
Much more consistent! There’s still a bit of latency, but it’s not fluctuating up to crazy numbers any more(note 2).
But there’s a problem: by default, the Pi will connect to all available networks and advertise its hostname to all of them. When it is attached to a network over both Wi-Fi and Ethernet, it doesn’t know that both are going to the same place, and it is effectively random which route will be used when communicating by hostname(note 3). If the Wi-Fi route is chosen, we get the same connectivity issues even though we could just as well have used Ethernet.
Picking a favourite
The nmcli (Network Manager CLI) command can show us the Pi’s networking
preferences:
nmcli --fields AUTOCONNECT-PRIORITY,NAME connection
Which prints something like:
AUTOCONNECT-PRIORITY NAME 0 netplan-eth0 0 my-wifi-network 0 lo 0 docker0
We might expect to be able to use these “autoconnect priority” settings to prefer Ethernet over Wi-Fi, by running either of these commands:
sudo nmcli connection modify "netplan-eth0" connection.autoconnect-priority 1
# or
sudo nmcli connection modify "my-wifi-network" connection.autoconnect-priority -1
But this does not actually work: the autoconnect priority only applies within the same device (e.g. between multiple available Wi-Fi networks); it doesn’t apply across multiple devices (e.g. Wi-Fi and Ethernet).
An actual solution
Instead, we can take a more drastic approach: disabling / enabling the entire Wi-Fi feature automatically when an Ethernet cable is connected / removed:
sudo tee /etc/NetworkManager/dispatcher.d/10-prefer-ethernet >/dev/null <<"EOF"
#!/bin/sh
if [ "$2" = "up" ] || [ "$2" = "down" ]; then
if nmcli --fields type connection show --active | grep ethernet; then
nmcli radio wifi off
else
nmcli radio wifi on
fi
fi
EOF
sudo chmod 0744 /etc/NetworkManager/dispatcher.d/10-prefer-ethernet
sudo systemctl restart NetworkManager
This sets up a network callback which automatically disables Wi-Fi when Ethernet is connected, and turns it back on when disconnected. This happens live, so the Pi will not only configure itself correctly when first switched on, but also automatically (and immediately) reconfigure if the setup changes.
One thing to watch out for: if you are connected to the Pi over Wi-Fi then plug it in to Ethernet, your existing connection will be lost (due to Wi-Fi being switched off).
Bluetooth interactions
The Pi (like most devices with embedded radio) uses the same component for both Wi-Fi and Bluetooth connectivity. Personally, I don’t need Bluetooth on the Pi at all (since I only connect to it via SSH from my computer rather than using any peripherals like a wireless keyboard), so I typically turn it off with:
echo 'dtoverlay=disable-bt' | sudo tee -a /boot/firmware/config.txt >/dev/null
But it turns out this is a very bad idea when using Wi-Fi! Let’s take a look at the Wi-Fi ping statistics when Bluetooth is disabled:
$ ping -i 10 -c 10 mypi.local PING mypi.local (192.168.0.5): 56 data bytes 64 bytes from 192.168.0.5: icmp_seq=0 ttl=64 time=7.152 ms 64 bytes from 192.168.0.5: icmp_seq=1 ttl=64 time=1364.511 ms 64 bytes from 192.168.0.5: icmp_seq=2 ttl=64 time=372.445 ms 64 bytes from 192.168.0.5: icmp_seq=3 ttl=64 time=402.857 ms 64 bytes from 192.168.0.5: icmp_seq=4 ttl=64 time=637.891 ms 64 bytes from 192.168.0.5: icmp_seq=5 ttl=64 time=9.875 ms 64 bytes from 192.168.0.5: icmp_seq=6 ttl=64 time=1826.176 ms 64 bytes from 192.168.0.5: icmp_seq=7 ttl=64 time=1037.947 ms 64 bytes from 192.168.0.5: icmp_seq=8 ttl=64 time=165.597 ms 64 bytes from 192.168.0.5: icmp_seq=9 ttl=64 time=10.126 ms --- mypi.local ping statistics --- 10 packets transmitted, 10 packets received, 0.0% packet loss round-trip min/avg/max/stddev = 7.152/583.458/1826.176/600.458 ms
The maximum round-trip has shot up to nearly 2 seconds!
As noted in the introduction, this is probably because the chip is entering a “sleep” mode from inactivity, and takes some time to wake up.
So when Wi-Fi is being used, it’s definitely better to keep Bluetooth powered on to avoid the worst of the latency. We can at least disable the software side of things if we’re not using it, to save a few system resources:
systemctl disable --now bluetooth
It would be nice to be able to fully power it down when Ethernet is connected, but I don’t know of a way to do that without a restart.
Only Ethernet
The fixes above assume you have a Pi which is set up to connect to Wi-Fi, and you want a more reliable connection when using Ethernet. If you only want Ethernet, you can simply turn off Wi-Fi entirely with:
echo 'dtoverlay=disable-wifi' | sudo tee -a /boot/firmware/config.txt >/dev/null
Or disable both Wi-Fi and Bluetooth:
echo 'dtoverlay=disable-bt,disable-wifi' | sudo tee -a /boot/firmware/config.txt >/dev/null
Further reading
Thanks to Network Manager example #15 for the main solution in this article.
Footnotes
The situation is not so bad when using rapid pings over the same total timespan:
↩︎$ ping -i 0.1 -c 1000 mypi.local PING mypi.local (192.168.0.5): 56 data bytes [...] --- mypi.local ping statistics --- 1000 packets transmitted, 1000 packets received, 0.0% packet loss round-trip min/avg/max/stddev = 3.186/6.810/18.955/0.935 msAnd again, if we use rapid pings we see better results:
↩︎ping -i 0.1 -c 1000 mypi.local PING mypi.local (192.168.0.11): 56 data bytes [...] --- mypi.local ping statistics --- 1000 packets transmitted, 1000 packets received, 0.0% packet loss round-trip min/avg/max/stddev = 2.657/3.586/7.955/0.452 msIt’s still possible to pick the Wi-Fi or Ethernet connection explicitly by connecting by IP (since the Pi gets assigned a separate IP address for each connectivity method), but this requires knowing the IP address which was assigned, and is all-round less convenient than using a hostname. ↩︎
